EAN-13是商品中广泛使用的条码，今天上条码课（汗——）布置这个任务，咱就用Win32 API写了个简单的条码生成器，代码分享一下，如果有需要请自取。
这个EAN-13条码生成器写的部分倒是不多，因为是使用GDI32的程序，所以主体部分是Windows程序的消息循环，我处理的就是WM_PAINT消息的部分，输入部分我采用的是控制台方式。
下面是输入范例：
genEAN13 111111111111
genEAN13 1111111111111
genEAN13 111111111111?
编译参数：
cl.exe genEAN13.c /link user32.lib gdi32.lib

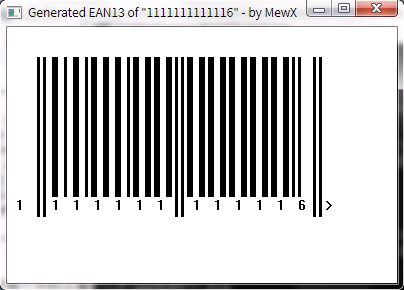

效果图（可以用app扫的）：
代码如下（主要就是WM_PAINT的部分，三目用的有点多，分行不自然 _(:з」∠)_）：
/**
* Name : EAN13 Generator
* Author: MewX
* Date : 2014.11.25
**/
#include <windows.h>
#include <string.h>
// global values
#define BASE_WIDTH 3 // in pixel
#define DEFAULT_LEN 140
#define EXTRA_LEN 20
#define CODE_WIDTH 7
const char tab_abc[ 3 ][ 10 ][ CODE_WIDTH + 1] = {
{
"0001101",
"0011001",
"0010011",
"0111101",
"0100011",
"0110001",
"0101111",
"0111011",
"0110111",
"0001011" },
{
"0100111",
"0110011",
"0011011",
"0100001",
"0011101",
"0111001",
"0000101",
"0010001",
"0001001",
"0010111" },
{
"1110010",
"1100110",
"1101100",
"1000010",
"1011100",
"1001110",
"1010000",
"1000100",
"1001000",
"1110100" }
}; // tab_abc[ A/B/C ][ 0~9 ][ enc ]
const char tab_left[ 6 ][ 10 ] = {
{ 'A', 'B', 'B', 'A', 'B', 'B', 'A', 'B', 'A', 'A' },
{ 'A', 'B', 'A', 'B', 'B', 'A', 'A', 'A', 'B', 'B' },
{ 'A', 'A', 'B', 'B', 'A', 'A', 'B', 'B', 'B', 'A' },
{ 'A', 'B', 'B', 'B', 'A', 'B', 'B', 'A', 'A', 'B' },
{ 'A', 'A', 'A', 'A', 'B', 'B', 'B', 'B', 'B', 'B' },
{ 'A', 'A', 'A', 'A', 'A', 'A', 'A', 'A', 'A', 'A' }
}; // tab_left[ 0~5 ][ 0~9 ]
const char beg[ 4 ] = "101";
const char mid[ 6 ] = "01010";
#define end beg
char szStrIn[ 100 ], szTempStr[ 100 ];
int nStrInLen, errorCount;
// gen functions
LRESULT CALLBACK WndProc (HWND, UINT, WPARAM, LPARAM) ;
void drawLine( HDC hdc, int p, int color, int *pos_x, int *pos_y );
int WINAPI WinMain (HINSTANCE hInstance, HINSTANCE hPrevInstance,
PSTR szCmdLine, int iCmdShow)
{
static TCHAR szAppName[] = TEXT ("genEAN13") ;
HWND hwnd ;
MSG msg ;
WNDCLASS wndclass ;
int i, odd, even;
if( strlen( szCmdLine ) < 1 ) {
MessageBoxW( NULL, L"命令行参数：\r\n genEAN13.exe <12/13 digits>\r\n\
（不区分大小写）\r\ne.g. genEAN13.exe 690123456789", L"MewX",
MB_ICONINFORMATION );
return 0;
}
// init str_in
strcpy( szStrIn, szCmdLine ); // make a copy
nStrInLen = strlen( szStrIn );
errorCount = 0;
// check digits
for( i = 0; i < 12; i ++ )
if( szStrIn[ i ] < '0' || szStrIn[ i ] > '9' )
errorCount ++;
if( errorCount != 0 ||
strlen( szStrIn ) != 13 && strlen( szStrIn ) != 12 ) {
MessageBoxW( NULL,
L"Code length is 12 or 13!\r\nAnd should be digits!", L"MewX",
MB_ICONINFORMATION );
return 0;
}
// calc check code
odd = even = 0;
for( i = 0; i < 12; i += 2 ) odd += szStrIn[ i ] - '0';
for( i = 1; i < 12; i += 2 ) even += szStrIn[ i ] - '0';
szStrIn[ 12 ] = ( ( even * 3 + odd ) % 10 == 10 ?
'0' : ( 10 - ( even * 3 + odd ) % 10 + '0' ) );
szStrIn[ 13 ] = '\0';
// gen title
sprintf( szTempStr, "Generated EAN13 of \"%s\" - by MewX", szStrIn );
wndclass.style = CS_HREDRAW | CS_VREDRAW ;
wndclass.lpfnWndProc = WndProc ;
wndclass.cbClsExtra = 0 ;
wndclass.cbWndExtra = 0 ;
wndclass.hInstance = hInstance ;
wndclass.hIcon = LoadIcon (NULL, IDI_APPLICATION) ;
wndclass.hCursor = LoadCursor (NULL, IDC_ARROW) ;
wndclass.hbrBackground = (HBRUSH) GetStockObject (WHITE_BRUSH) ;
wndclass.lpszMenuName = NULL ;
wndclass.lpszClassName = szAppName ;
if (!RegisterClass (&wndclass)) {
MessageBox (NULL, TEXT ("Program requires Windows NT!"),
szAppName, MB_ICONERROR) ;
return 0 ;
}
hwnd = CreateWindow (szAppName, szTempStr,
WS_OVERLAPPEDWINDOW,
CW_USEDEFAULT, CW_USEDEFAULT,
CW_USEDEFAULT, CW_USEDEFAULT,
NULL, NULL, hInstance, NULL) ;
ShowWindow (hwnd, iCmdShow) ;
UpdateWindow (hwnd) ;
while (GetMessage (&msg, NULL, 0, 0)) {
TranslateMessage (&msg) ;
DispatchMessage (&msg) ;
}
return msg.wParam ;
}
LRESULT CALLBACK WndProc (
HWND hwnd,
UINT message,
WPARAM wParam,
LPARAM lParam )
{
static int cxClient, cyClient ;
HDC hdc ;
int i, j, x, y;
char temp;
PAINTSTRUCT ps ;
switch (message) {
case WM_SIZE:
cxClient = LOWORD (lParam) ;
cyClient = HIWORD (lParam) ;
return 0 ;
case WM_PAINT:
hdc = BeginPaint (hwnd, &ps) ;
// draw EAN13
temp = szStrIn[ 0 ]; // pos 13 code
x = y = 30;
// draw beg
for( j = 0; j < 3; j ++ ) drawLine( hdc, 0, beg[ j ] - '0', &x, &y );
TextOutA( hdc, x - BASE_WIDTH * 10, y + DEFAULT_LEN,
&szStrIn[ 0 ], 1 );
for( i = 1; i < 13; i ++ ) { //skip first, and calc first 13 digits only
for( j = 0; j < CODE_WIDTH; j ++ )
drawLine( hdc, 1,
tab_abc[ ( i < 7 ? tab_left[ 6 - i ][ temp - '0' ] :
'C' ) - 'A' ][ szStrIn[ i ] - '0' ][ j ] - '0',
&x, &y );
TextOutA( hdc, x - BASE_WIDTH * 5, y + DEFAULT_LEN,
&szStrIn[ i ], 1 );
// draw mid
if( i == 6 ) for( j = 0; j < 5; j ++ )
drawLine( hdc, 0, mid[ j ] - '0', &x, &y );
}
// draw end
for( j = 0; j < 3; j ++ ) drawLine( hdc, 0, beg[ j ] - '0', &x, &y );
TextOutA( hdc, x + BASE_WIDTH, y + DEFAULT_LEN, ">", 1 );
return 0 ;
case WM_DESTROY:
PostQuitMessage (0) ;
return 0 ;
}
return DefWindowProc (hwnd, message, wParam, lParam) ;
}
void drawLine( HDC hdc, int p, int color, int *pos_x, int *pos_y )
{
// get left-top point pos_x & pos_y to draw
// p : 0 - longer, 1 - common
// color: 0 - white, 1 - black
int i;
if( color == 1 ) {
for( i = 0; i < BASE_WIDTH; i ++ ) {
MoveToEx( hdc, *pos_x + i, *pos_y, NULL );
LineTo( hdc, *pos_x + i, *pos_y + DEFAULT_LEN +
( p == 0 ? EXTRA_LEN : 0 ) );
}
}
*pos_x += BASE_WIDTH;
return;
}
